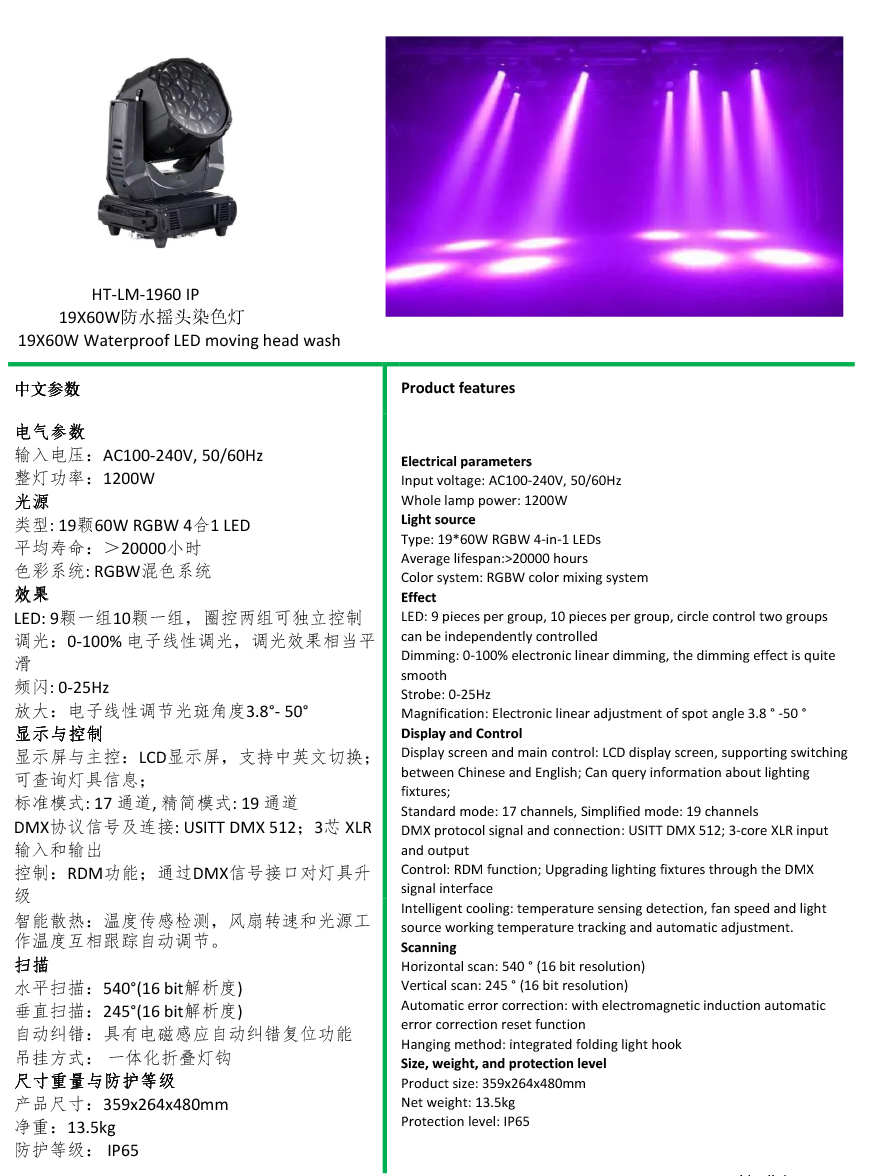

Electrical parameters
Input voltage: AC100-240V, 50/60Hz

Whole lamp power: 1200W

Light source
Type: 19*60W RGBW 4-in-1 LEDs
Average lifespan:>20000 hours

Color system: RGBW color mixing system

Effect

LED: 9 pieces per group, 10 pieces per group, circle control two groups can be independently controlled
Dimming: 0-100% electronic linear dimming, the dimming effect is quite smooth
Strobe: 0-25Hz
Magnification: Electronic linear adjustment of spot angle 3.8 ° -50 °

Display and Control

Display screen and main control: LCD display screen, supporting switching between Chinese and English; Can query information about lighting fixtures;
Standard mode: 17 channels, Simplified mode: 19 channels
DMX protocol signal and connection: USITT DMX 512; 3-core XLR input and output
Control: RDM function; Upgrading lighting fixtures through the DMX signal interface
Intelligent cooling: temperature sensing detection, fan speed and light source working temperature tracking and automatic adjustment.

scanning

Horizontal scan: 540 ° (16 bit resolution)
Vertical scan: 245 ° (16 bit resolution)
Automatic error correction: with electromagnetic induction automatic error correction reset function
Hanging method: integrated folding light hook

Size, weight, and protection level

Product size: 359x264x480mm
Net weight: 13.5kg
Protection level: IP65
